Message Flow

Message flow represents the communication between separate pools. It visualizes how pairs of senders and recipients of messages are connected.

EditSource: send message

Destination: receive message

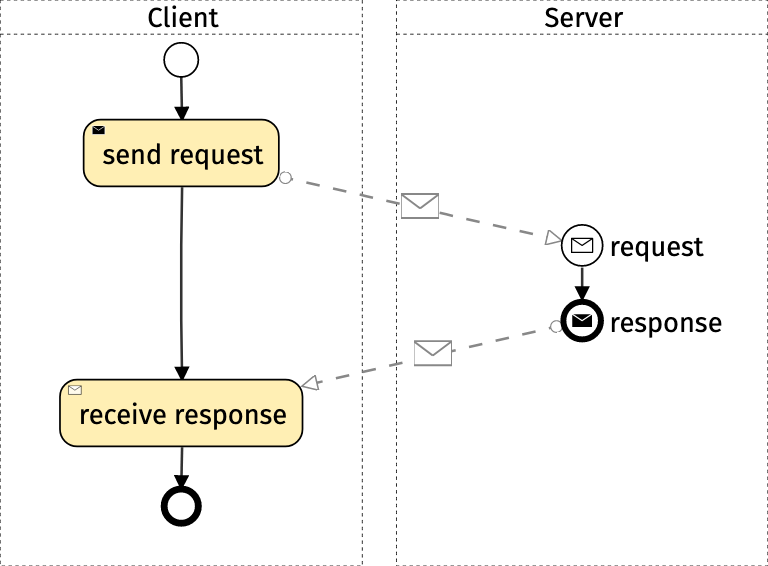

In BPMN Sketch Miner message flow is automatically displayed whenever a pair of matching send and receive tasks (or events) which refer to the same message are found in the text.


send request
receive response


(receive request)
(send response)

In the example request and response are the names of the messages which should match for the message flow to appear in the diagram.

More Examples
